AWL 600 CROQUANT CUTTING AND DOUGH ROLLING MACHINE (WITH AUTOMATIC DOUGH POURING SYSTEM)
Technical Specifications
- The capacity varies depending on product type and weight and is 80-100 kg/hour.
- The specified capacity varies depending on the cooking of the sugar and product type. Since soft products are not cooked, the capacity increases by + 40%,
- All surfaces with which the product contacts before packaging, including the machine covers, are made of AISI 304 chromium stainless steel,
- Chromium plated design for full and easy cleaning,
- Sub-chassis system with casters, which can bear excess load for easy installation,
- Special double-layer PVC / PU anti-bacterial white silicone belt is used in the machine,

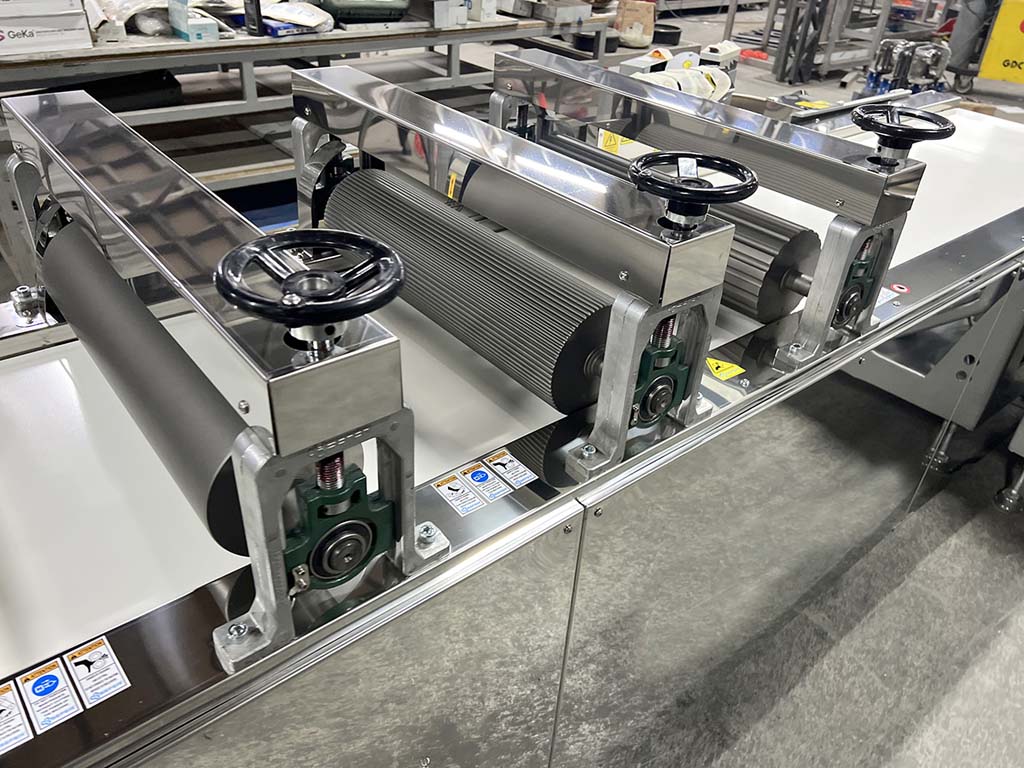

- Our machine is equipped with special production SAF PTFE Teflon or TEFLON coated steel shaping and dough rolling cylinders,

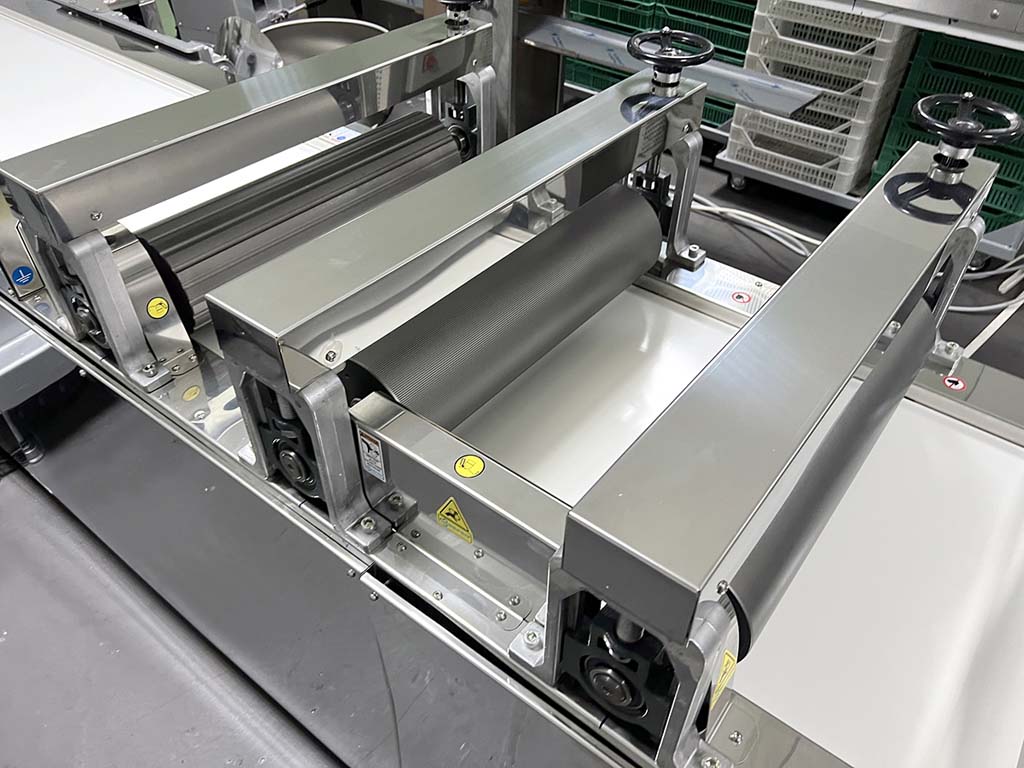

- The standard dough rolling cylinders are manufactured with three cylinders for "AWL 600",
- The dough rolling cylinders are in coordination with the belt and are motor controlled. Height and speed can be adjusted precisely.Minimum height is 3 mm / Maximum is 25 mm,

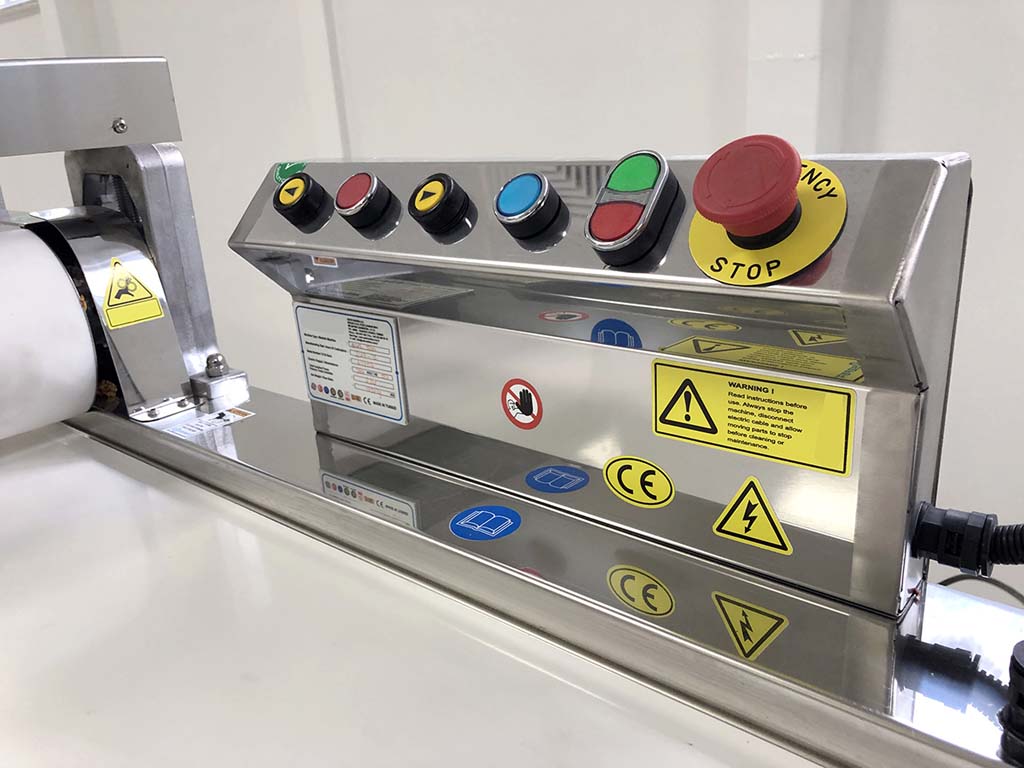

- General speed settings and recipe saving, station setting and height adjustment are made with millimeter precision through the LCD screen with electronic PLC communication,
- The electronic devices used are completely from DELTA / SIEMENS, ("SIEMENS" is offered optionally)

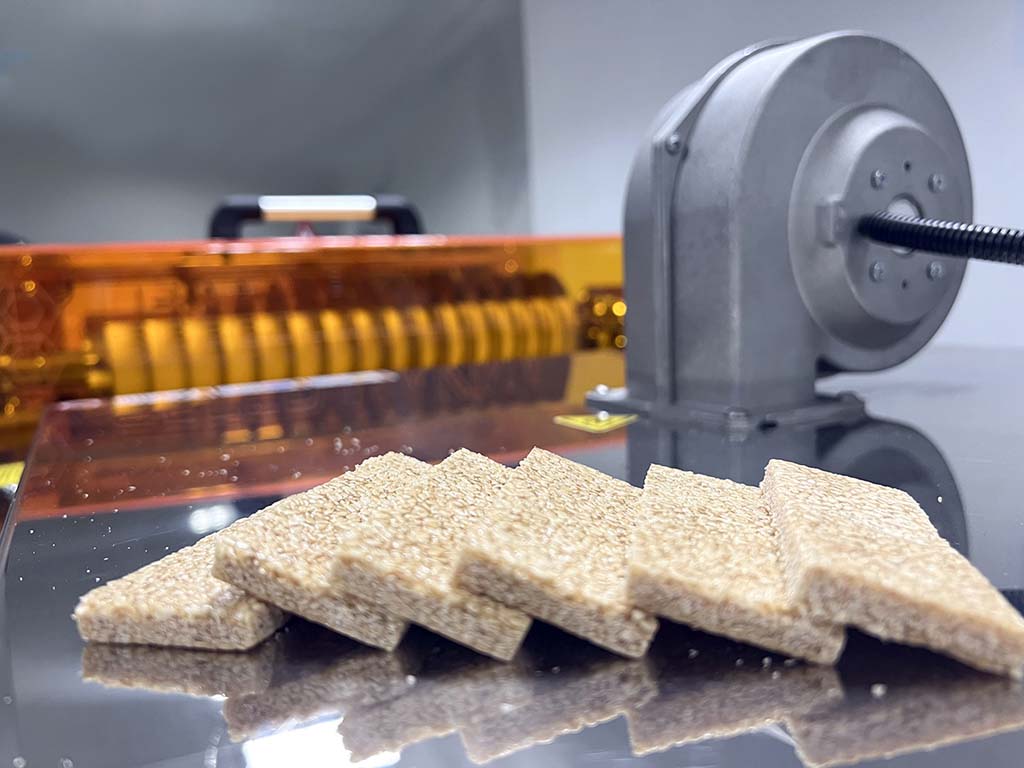

- As a length in the machine, any desired dimension can be cut by controlling from the screen,

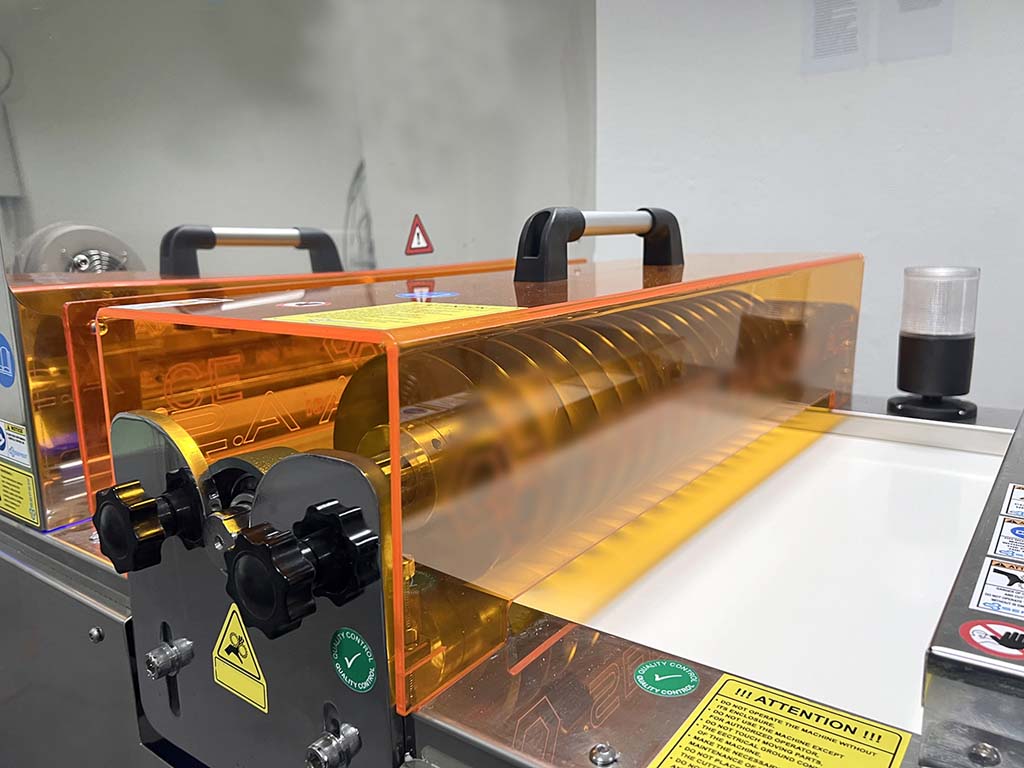

- The disc blades can be replaced and cleaned very easily (the design is specific to the machine)
- By changing the disc blades, the systematic type change is maximum 5 minutes,
- The length of the machine is 6 m, the height is 85 cm, the belt width is 55 cm, the chassis width is 75 cm in total,
- A product separation table is offered together with the machine. It is made of AISI 304 chromium stainless steel,

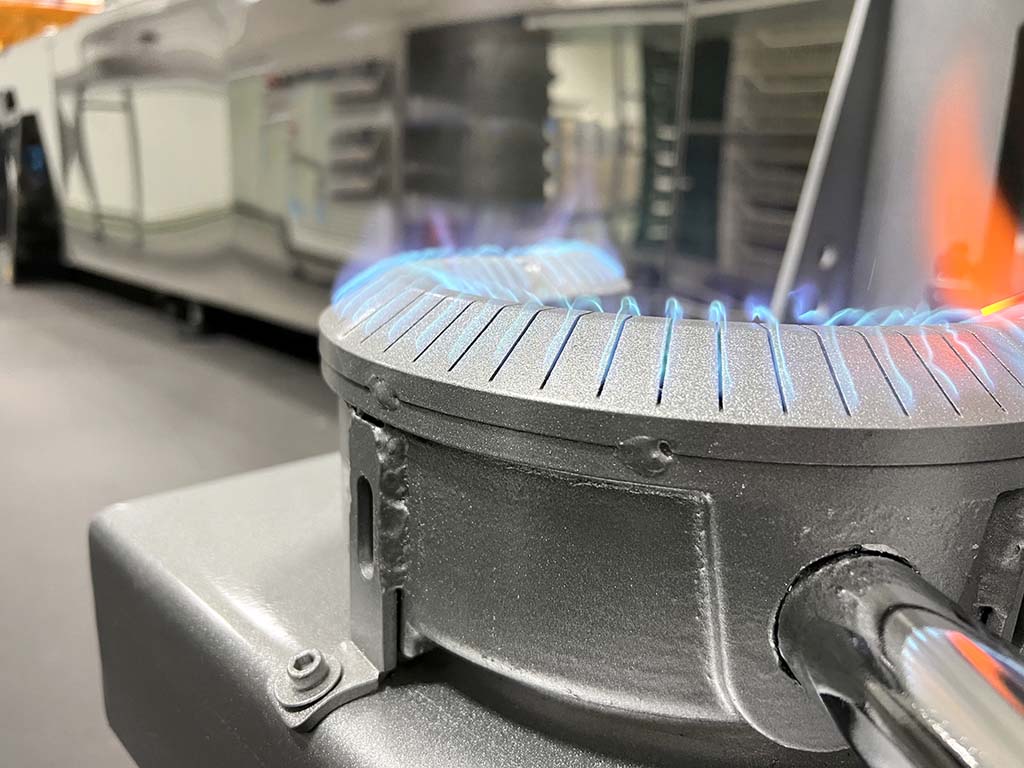

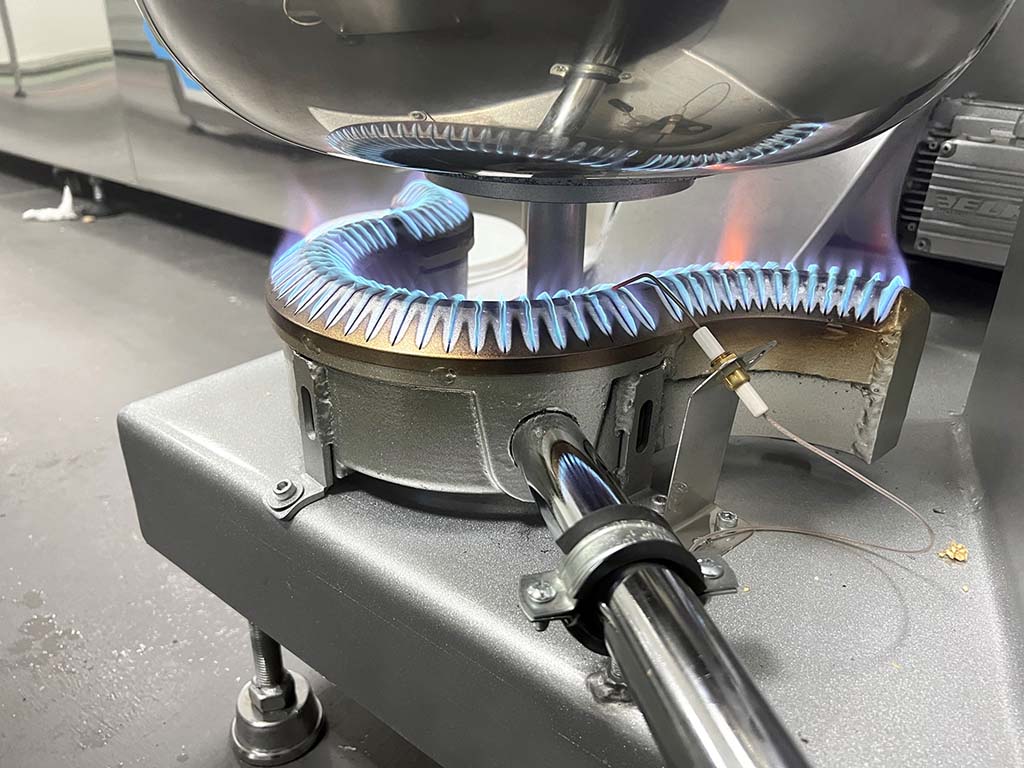

- Two "Automatic Pouring System" - "AWL 20 - 15 Kg Capacity Dough Cooking and Mixing" machines are offered together with the machine system,
- The total net weight of the machine is 1.050 kg,
- The machine can run with 380 V or 220 V,
- Total power of the machine: 5.2 Kw /h,
- Our machine is PATENTED,
