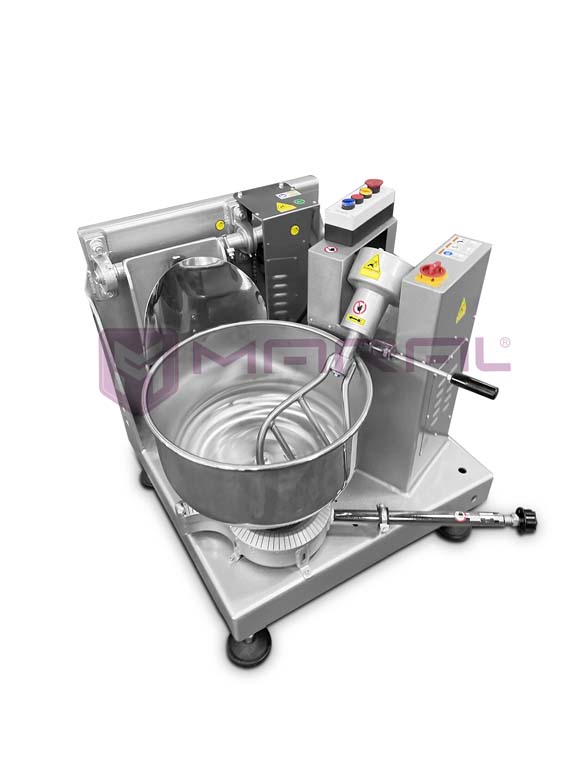

AWL 20 AUTOMATIC CROQUANT DOUGH MACHINE (Automatic Dough Pouring System)
Technical Specifications
- It is produced with a mixing capacity of 10-15 kg,
- On average, it has a dough capacity of 10 kg of sugar and pistachio mixture / 13 kg of sesame-sugar mixture,
- The mixing system has a specially adapted one-way paddle system,
- The mixer can be disassembled for cleaning,
- The boiler part can be removed from the lower connections,
- The boiler part can turn independently with dough mixing intensity,

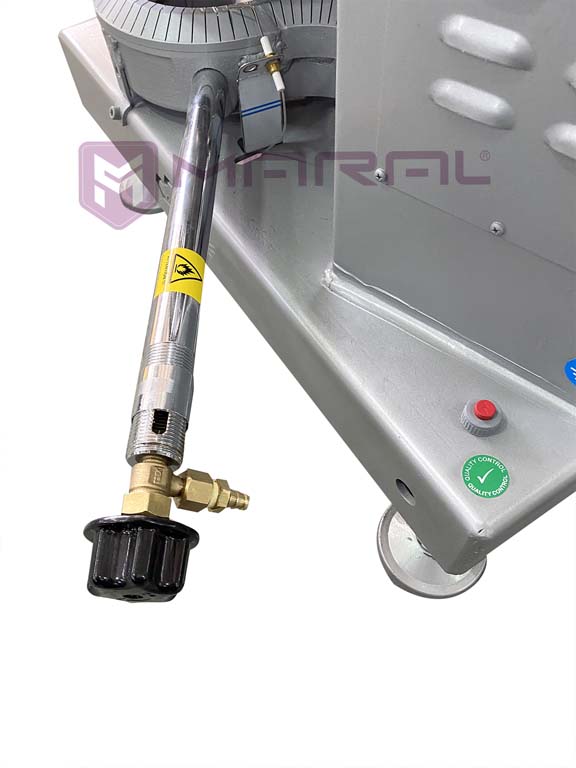

- There is a flame controlled furnace system which is compatible with LPG/natural gas at the bottom of the boiler,
- Gas protection system (thermal) and ignition system can be added (Optional)
- The machine is equipped with a a special reduction system and runs with a 0.75 Kw motor,
- Optionally, it can be operated with a 220 V / 380 V motor,
- The chamber, the boiler part and the coatings are made of 304 chromium stainless steel,
- An automatic system for tipping and pouring the dough is available,
- The dough pouring system is controlled by pressing a button and can be stopped at the desired angle,
- The boiler part can be specially made as "copper boiler".(Optional)
- The electrical system of the machine is from "SCHNEIDER" and the buttons are from "AUTONICS",
- The motors of the mixing and tilting system are from "VOLT",
- The dimensions of the machine: 100 cm x 80 cm x 110 cm
- The weight of the machine: 180 Kg,
