AWD 150 POWDERED SUGAR MILL
Technical Specifications

• The sugar storage chamber and the upper feeding chamber are made of AISI 304 Chromium-Nickel stainless material,
• The mill and 3 KW 2800 rpm motor are directly connected,
• It has a pin and hammer system, The disk surface is equipped with steel pins,
• The grinding disk and hammers are equipped with a 0.50 micron sieve,
• It grinds the granulated sugar as 28 – 30 microns of powder at a slow rate,
• The hourly capacity of our machine is 80 – 100 Kg,
• It has casters that can be locked so that it can move easily,
• A thermomagnetic is used for the motor protection system,
• Thanks to the start/stop button, it can be easily run, it is a 380 V three-phase system 3kw/h,
• The lower storage chamber can hold an average of 80 Kg of powder,

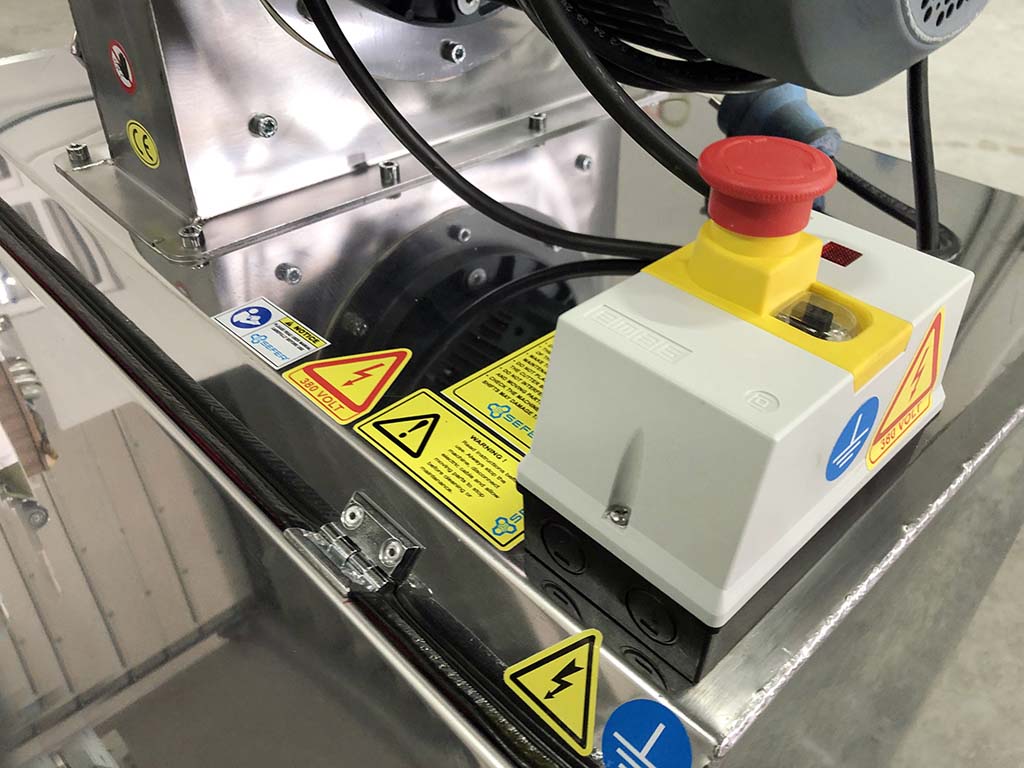

• An emergency stop button is available,
• The weight of the machine: 110 Kg,
