AWC 500 CHOCOLATE BALL MIXER  ( 500/ 250 KG )
Technical Specifications

• The chamber where the chocolate is formed is made of 304 chromium material and its thickness is 6 - 8 mm,
• Reducer and motor final drive system: 15 KW 70 rpm and VOLT brand,
• The capacity of the machine is 500 KG / 2 Hours,
• Chocolate pump is 2" inch input gear system and it is 2.2 KW - 100 rpm
• Special steel balls are used as a thinner and they are 3/8 (9.52 mm), The balls in the chamber are 495 KG,
• The water circulation pump is inverter controlled,
• The cold water feeding system has a ½" TORK valve,
• The machine is equipped with 4.500 Watts x 3 resistors,
• The electrical system of the machine consists of SIEMENS contactors and fuses, The electronic devices, touch screen and PLC - DELTA brand is used,

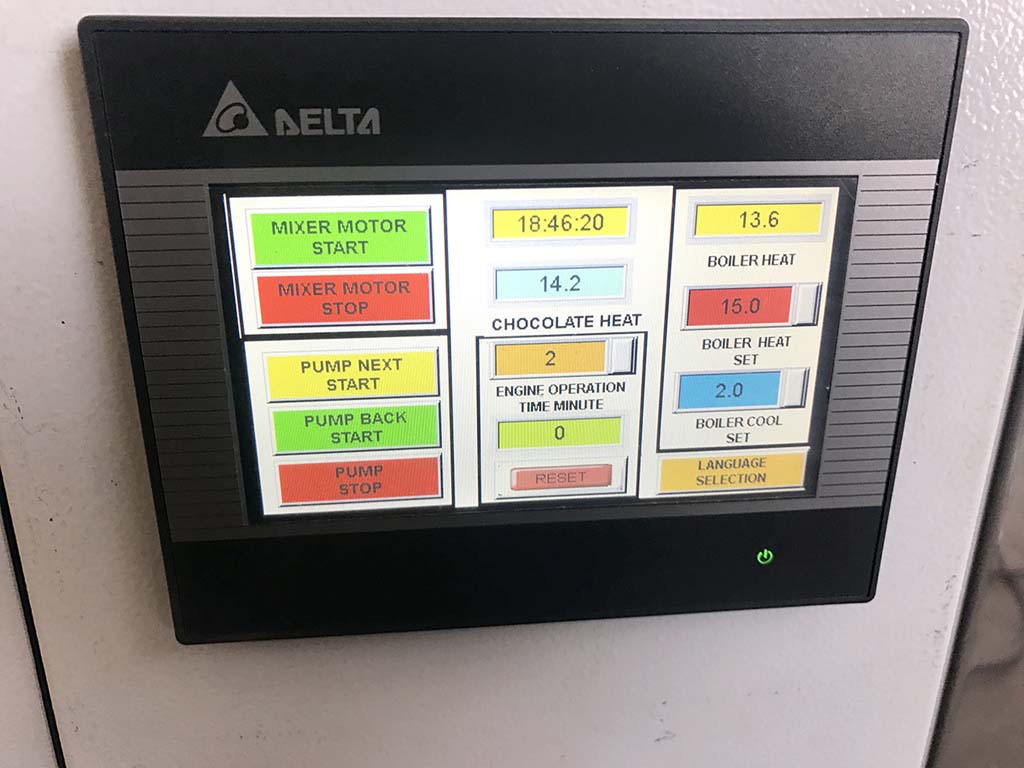

• The time and temperature are easily set through the LCD TOUCMATIC screen on the control panel,
• Thanks to the three-way valve, it is circulated in it and transferred into the chocolate resting tank,
• The chocolate pump and circulation pipes are double-walled and have a water heating system,

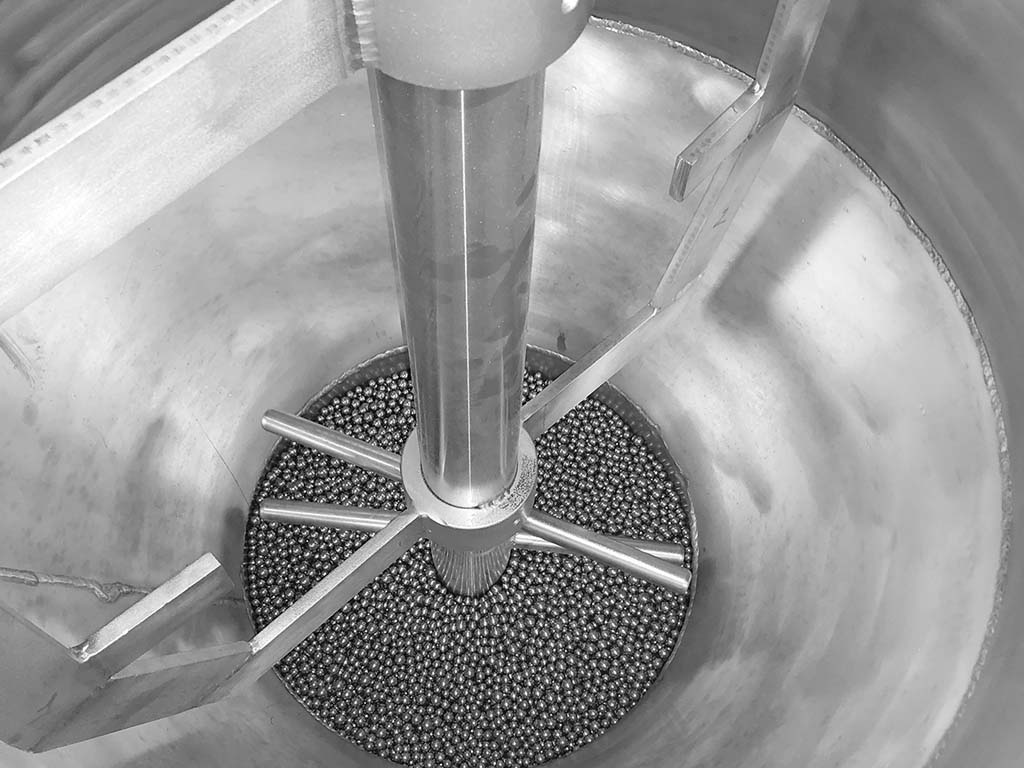

• Special angular anchors ensure the upward and downward movement of the balls, thus chocolate mixture is thinned.
• The total electric power of the machine is 35 Kw,
• The width of the machine: 110 cm x 240 cm x 190 cm Height,
• The weight of the machine: 1.050 Kg,
