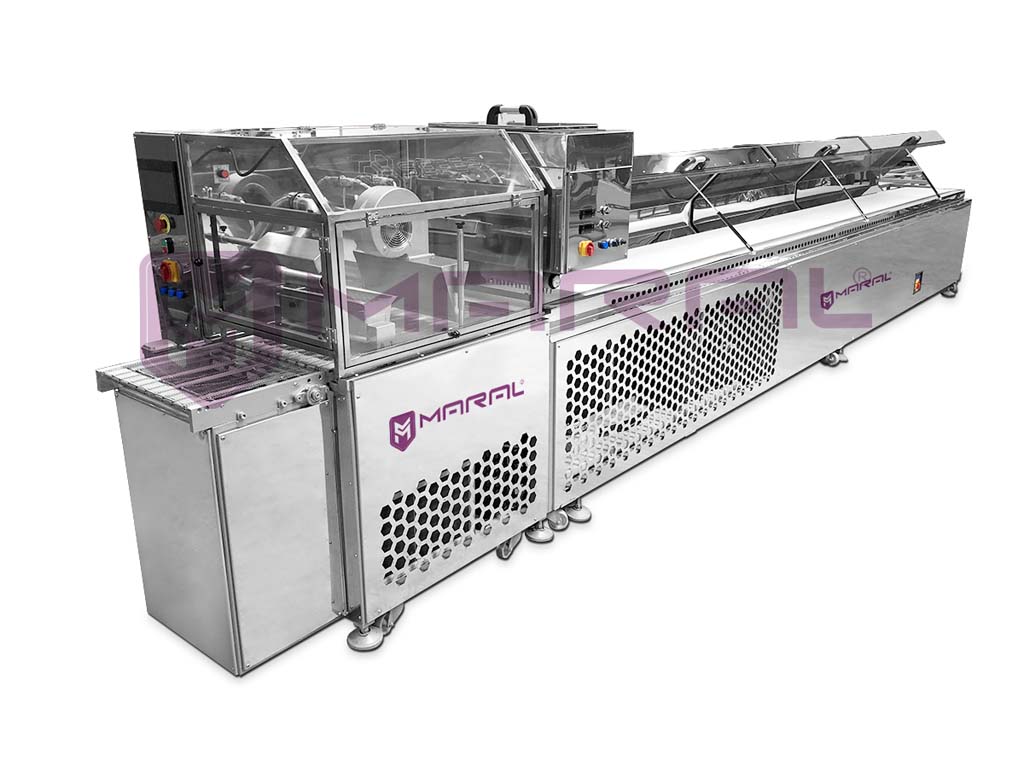

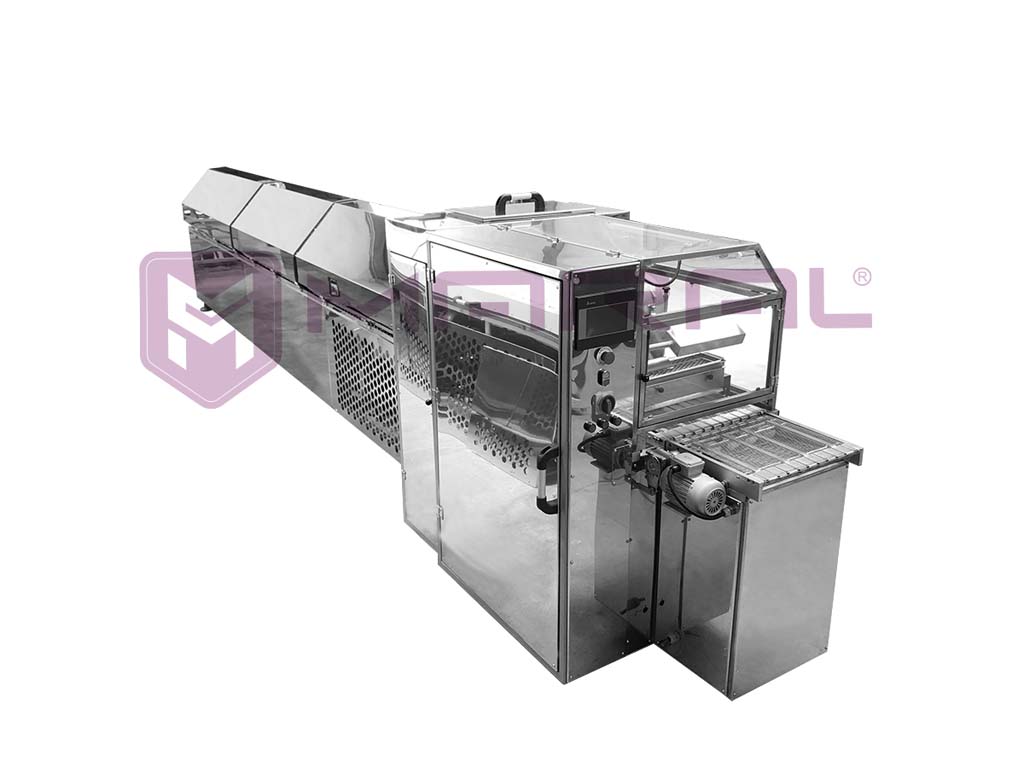

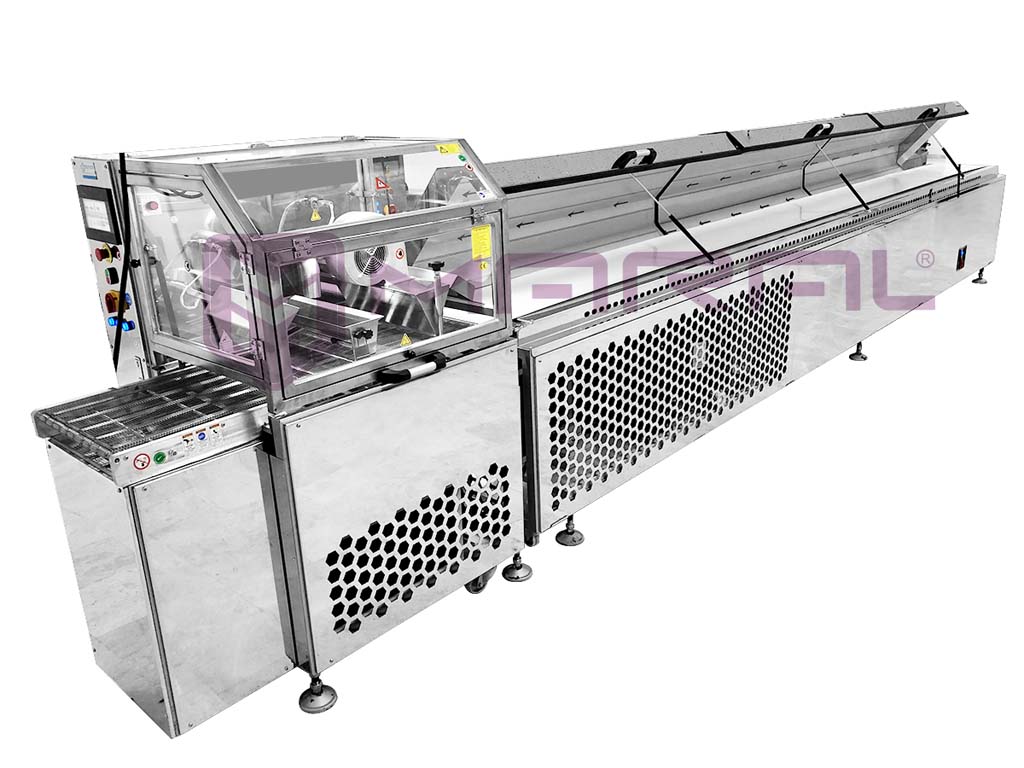

AWC 430 CHOCOLATE COATING MACHINE WITH TEMPERING SYSTEM
Technical Specifications

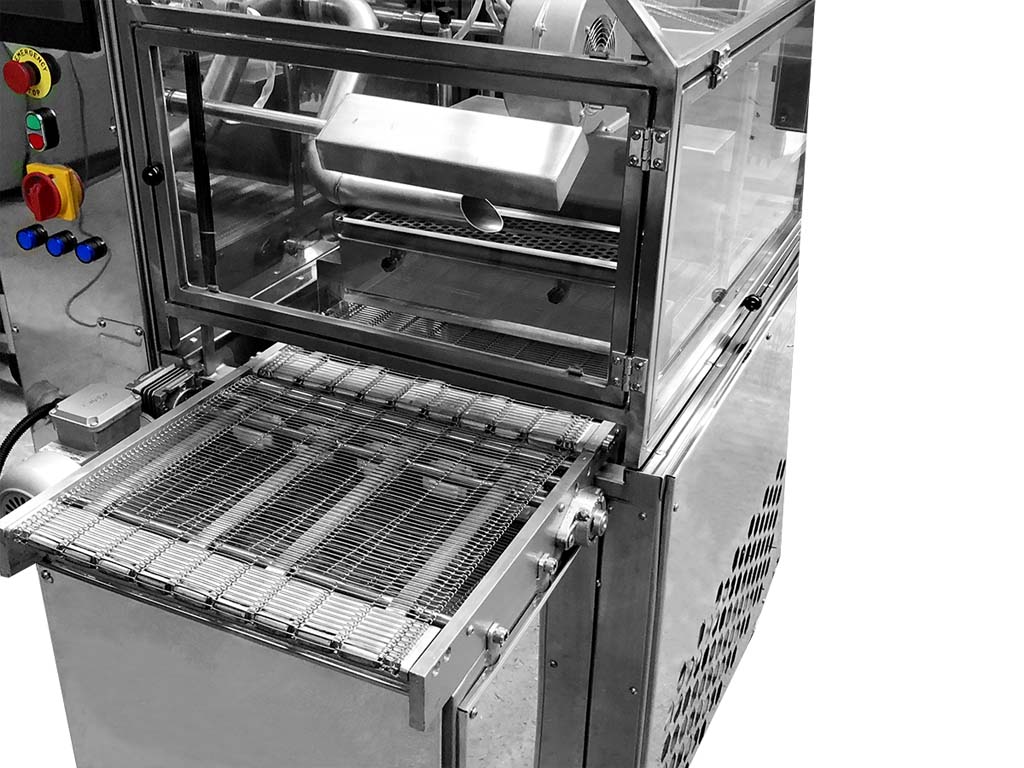

1. The wire belt system is speed controlled,
2. The manufactured wire belt size is 430 mm,
3. It allows you to temper melted chocolate at the temperatures you like,
4. The flow rate of chocolate is spiral and is adjusted by the speed control,
5. Using the speed control, the belt speeds are independently set,
6. The chocolate coating is a waterfall system that optionally can coat the product completely or only its lower part with chocolate (Optional)
7. You can adjust the weight by using the air blower system for the excess chocolate on the chocolate coated product, the air blower is speed controlled,
8. The machine can be equipped with belt vibration (Offered optionally)
9. The machine has a speed controlled tail collection system and this ensures that the product is coated in chocolate without any tail chocolate,
10. The boiler part heaters of the chocolate coating machine are 4.500 watts dual resistors,
11. There are 2 HP Hermetic system cooling and heating for the tempering system,
12. The tempering system and chocolate transfer have 0.75 Kw - 100 d/d spiral system,
13. "CERAMIC HEATER" is available at the inlet and outlet of the chocolate coating 2 x 1000 watts,
14. The chocolate coating cabinet is completly transparent "PLEXI GLASS" and is easy to open and close, There is a LED lighting system in the cabin,
15. The machine is controlled by the touch screen, all speed and heat settings are made via the screen,
16. It is easy to clean the machine, the wire belt part can be disassembled as cassette, it is completely easy to assemble and disassemble the cooling fan, waterfall system, ceramic heaters
17. A petterning machine can be externally attached to the machine system (Optional)
18. The electric power of the chocolate coating machine with tempering system is 10 KW,
19. Machine dimensions: 165 cm Length, 90 cm Width, 150 cm height, Weight is 370 kg.

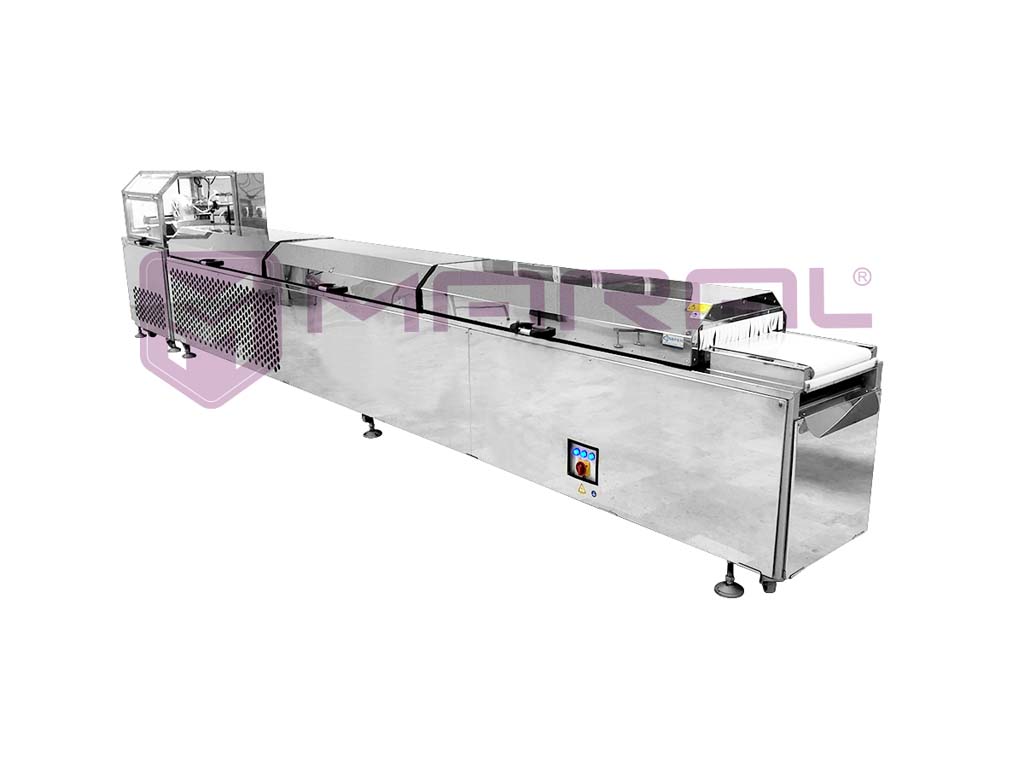

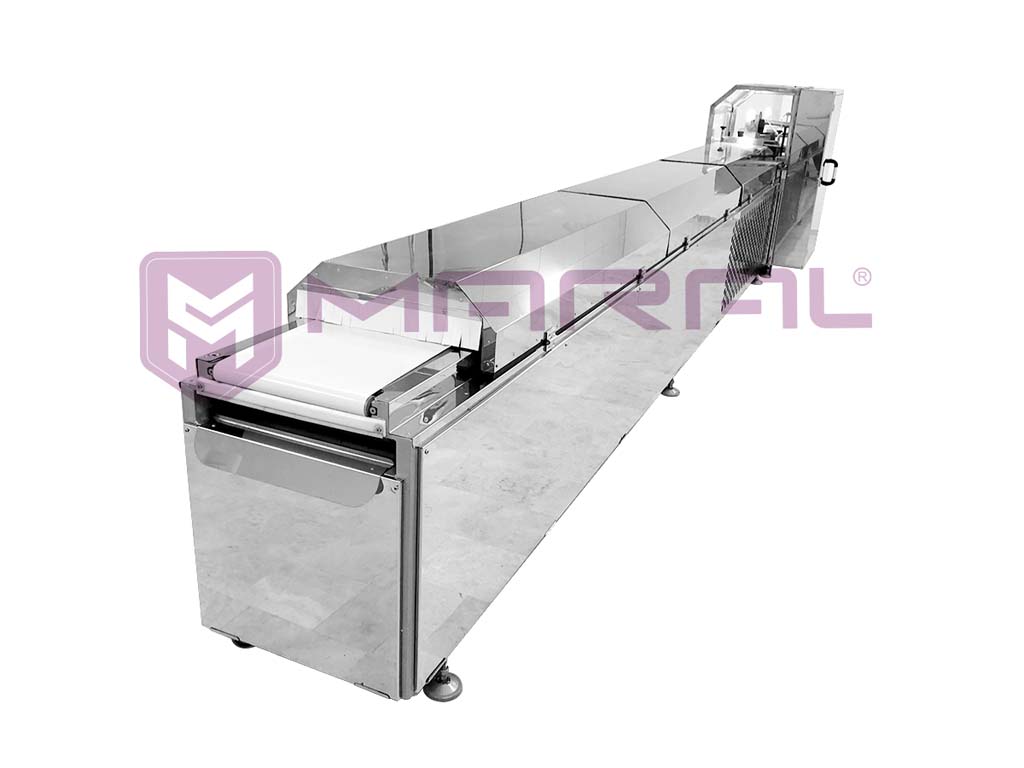

AWC 430 CHOCOLATE COOLING TUNNEL
Technical Specifications

1. The tunnel belt is speed controlled, the belt motor has a 0.75 Kw reducer,
2. The width of the belt is 450mm, PU food compatible conveyor belt is used,
3. The cooling tunnel is manufactured in lengths of 6 m and 10 m,
4. The cooling tunnel has a fully half-opening, piston controlled cover,
5. The cooling cell has dual zone fans, The fans can circulate 4.000 M3 air,
6. The cooling tunnel cooling motors are 7 HP / 10 HP and used as internal or external units,
7. Our machine can cool down to ''-5 degrees'',
8. The cooling tunnel system has a time controlled 8 KW - DEFROST function,
9. Inner parts of the machine and covers are completely made of AISI 304 stainless material and heat insulated,
10. The cooling motor part is coupled to the machine, Pipeline and assembly are not required for the gas system,
11. The machines have casters and fixing legs are available at the bottom,
12. The dimensions of the machine: 6 M / 10 M Length, 65 cm Width, 110 cm Height,
13. The total weight of the machine: 620 Kg,
14. The total electric power of the machine: 15 KW – 380 V 50-60 Hz
