AWC 400 CHOCOLATE COATING AND COOLING TUNNEL
Technical Specifications

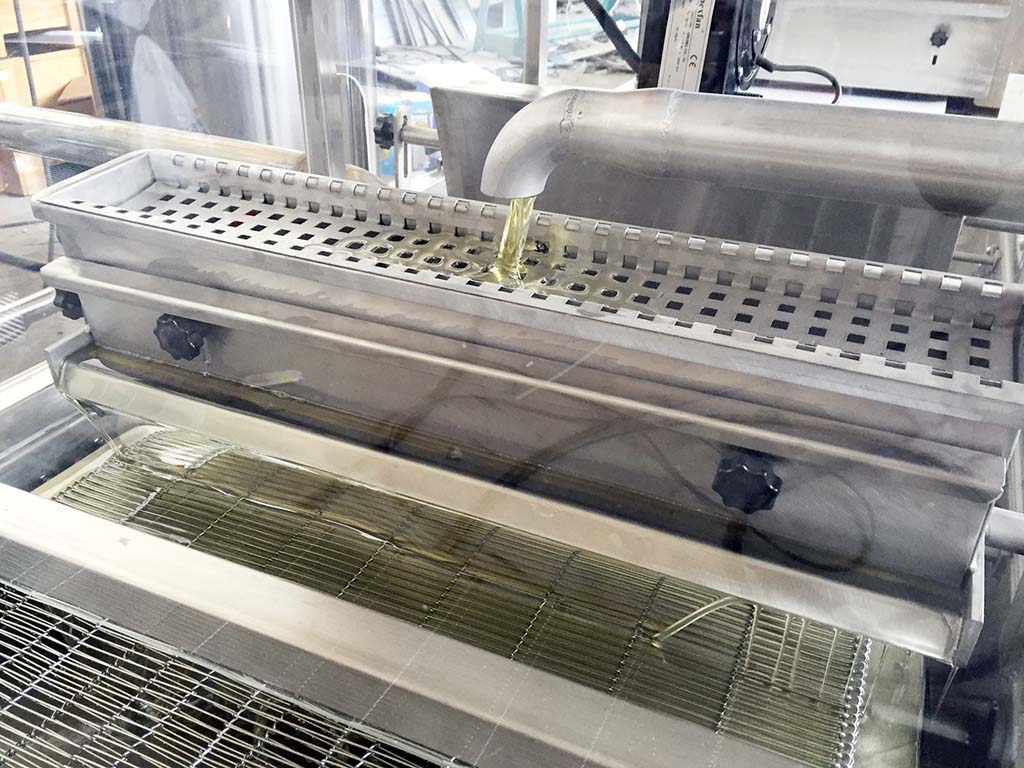

1. Chocolate coating machine with waterfall system,
2. The machine is equipped with a speed controlled wire belt system, the width of thebelt is 400 mm,
3. A chocolate mixing system is available,
4. Air curtain and ceramic cabin heater are available to adjust the chocolate weight,

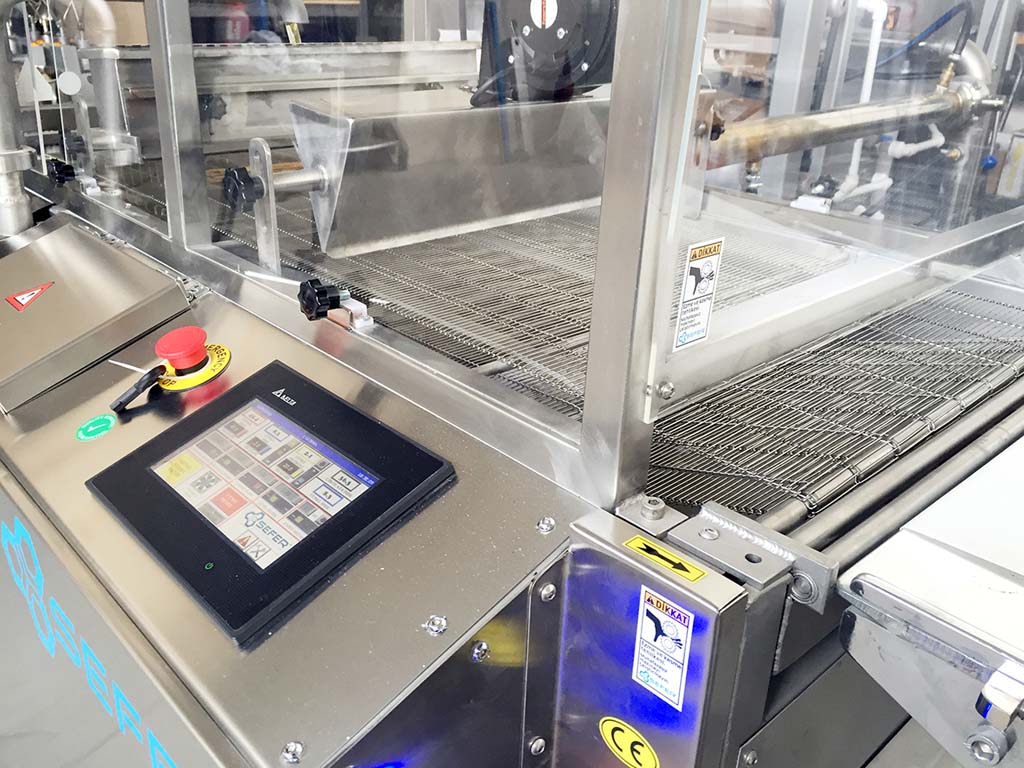

5. It is equipped with a PLC - LCD touch screen system,
6. On the machine, there is a system for hot water production,
7. The exterior surface coatings of the machine are completely made of AISI 304 chromium material,
8. The surfaces in contact with food are made of AISI 304 chromium material,
9. There is a LED lighting system in the cabin,
10. At the product outlet, a speed controlled tail cutting system is available,
11. The coating wire belt is a special series and it is made of AISI 304 stainless steel,
12. The machine cabin is completely coated with PLEXI-GLASS,
13. The machine has 4.000 WATTS water heating resistor,
14. Hourly product coating capacity is 100 Kg / 150 Kg,
15. The cooling tunnel can be optionally made as 6 and 8 meters,
16. The cooling tunnel cooling system is manufactured as "5 Hp or 7 Hp",
17. The cooling tunnel system has a time controlled 5 KW - DEFROST function,
18. The cooling tunnel is equipped with a PU special belt system and is speed controlled,
19. Chocolate Coating machine: 140 cm Length, 100 cm Width, 150 cm height,
20. Cooling Tunnel: 600 cm Length, 70 cm Width, 110 cm height,
21. The total weight of the machine: 760 Kg
22. The total electric power of the machine: 13 KW – 380 V 50-60 Hz
