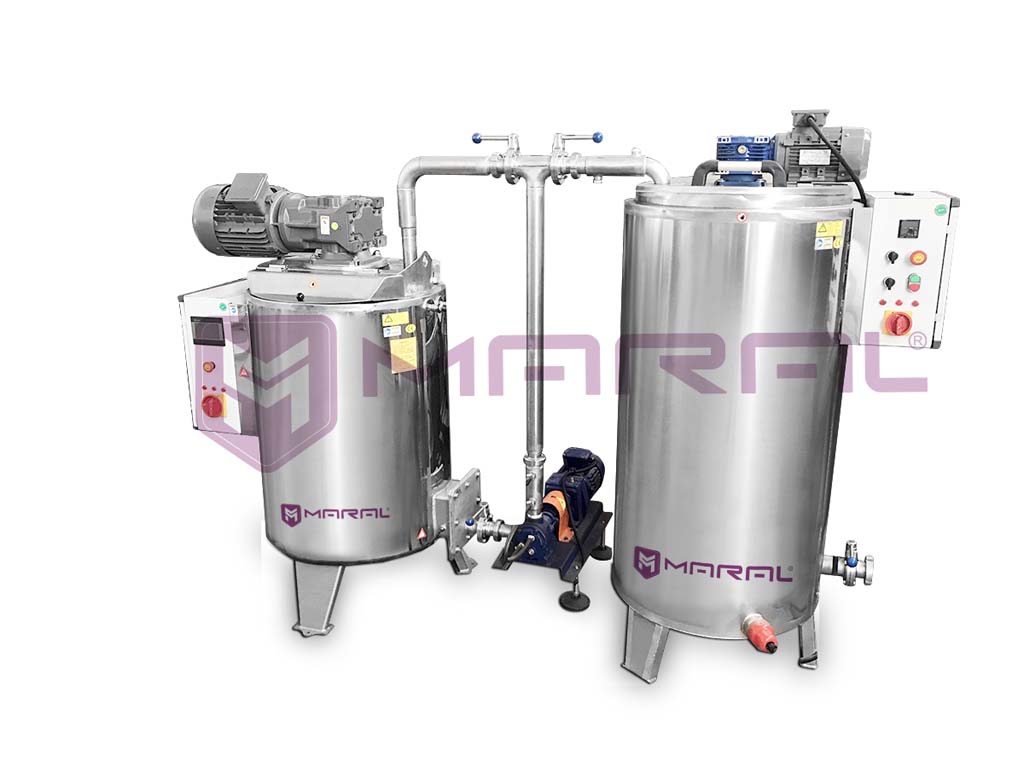

AWC 250 CHOCOLATE BALL MIXER  ( 100 – 250 KG )
Technical Specifications

• The chamber where the chocolate is formed is made of 304 chromium material and its thickness is 6 - 8 mm,
• Reducer and motor final drive system: 5 KW / 7.5 KW 70 rpm and VOLT brand,
• The machine is manufactured in two different capacities: 100 and 250 KG,
• 1.5" inch Chocolate pump is a gear system and it is  1.5 KW - 105 rpm

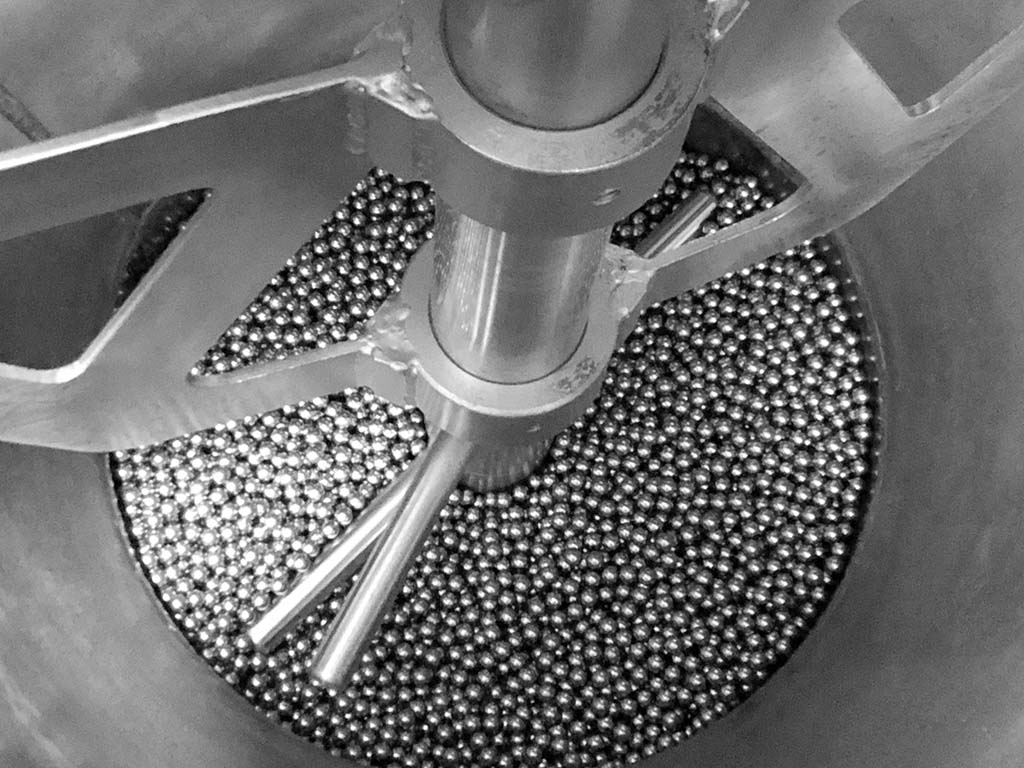

• Special steel balls are used as a thinner and they are 3/8 (9.52 mm),
• The water circulation pump is inverter controlled,
• The cold water feeding system has a 24 volt - ½" TORK valve,
• The machine is equipped with 4.000 Watts x 3 resistors,
• The electrical system of the machine consists of SIEMENS contactors and fuses, The electronic devices, touch screen and PLC - DELTA brand is used,

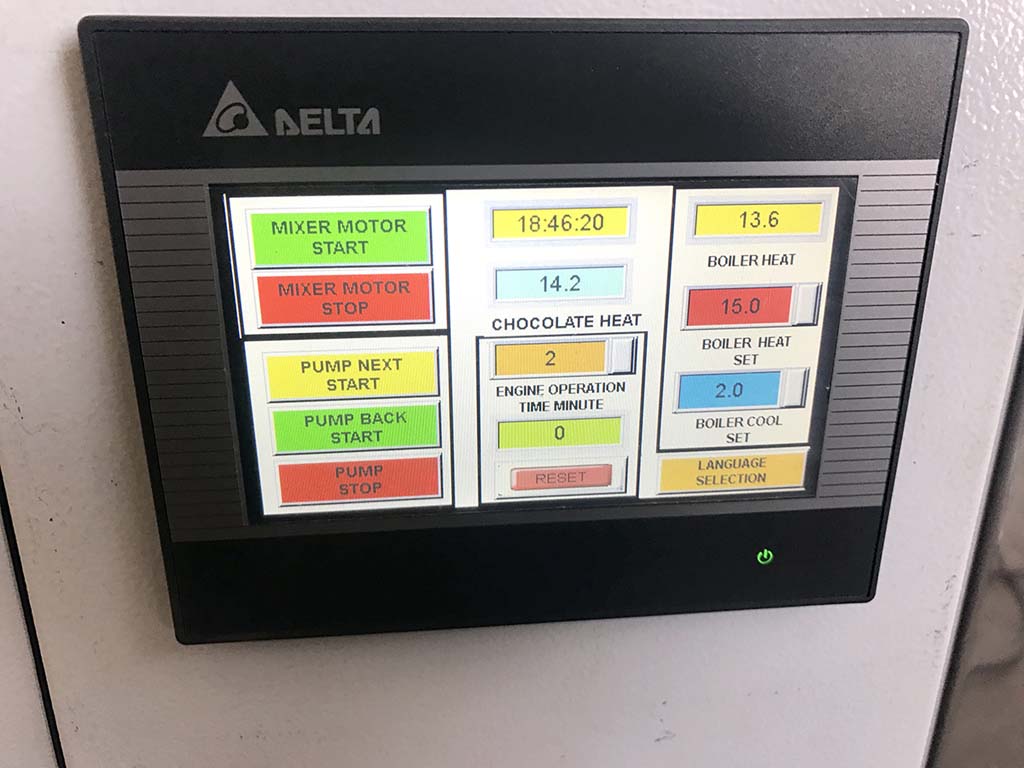

• The time and temperature are easily set through the LCD TOUCMATIC screen on the control panel,
• Thanks to the three-way valve, the chocolate is circulated in it and transferred to the chocolate resting tank,
• The chocolate pump and circulation pipes are double-walled and have a water heating system,

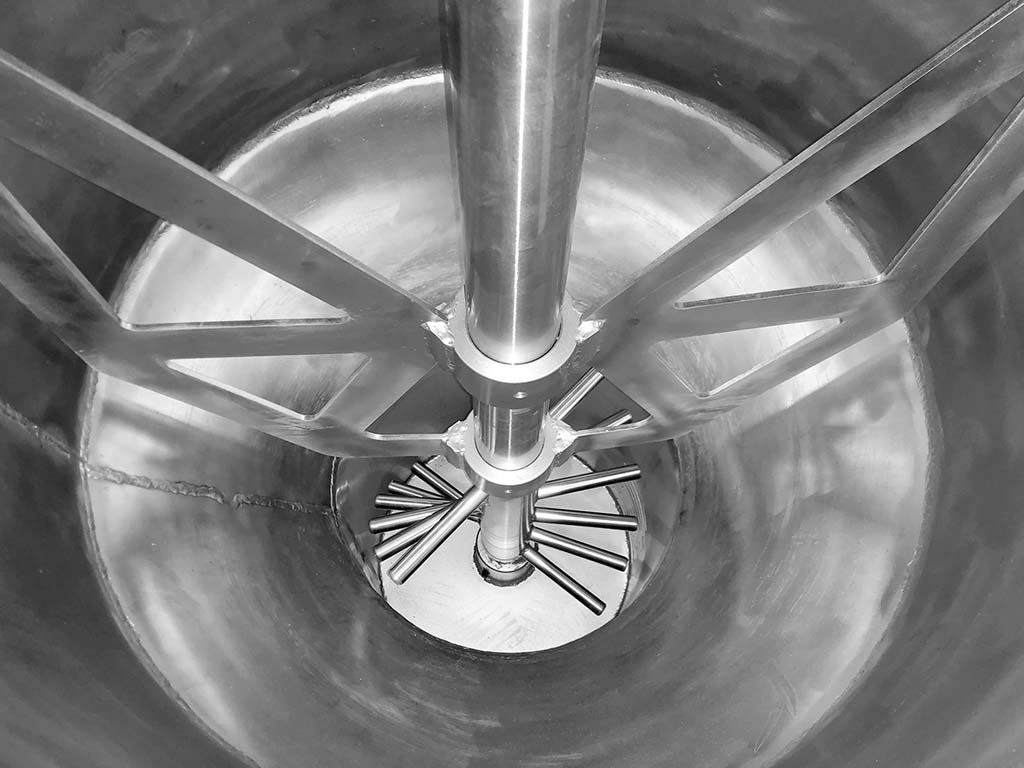

• Special angular anchors ensure the upward and downward movement of the balls, thus chocolate mixture is thinned.
• The total electric power of the machine: (100 kg = 18.5 KW / 250 kg = 21 KW),
• The width of the machine: 90 cm x 140 cm x 160 cm Height,
• The weight of the machine : ( 100 Kg =480 Kg / 250 Kg = 650 KG ),
