CHOCOLATE FILLING MACHINE – TWO-COLOR (SERVO SYSTEM) 750 kg /Hour

• With the 4-nozzle system which is specially designed for two-color chocolate, you can fill the desired weight,

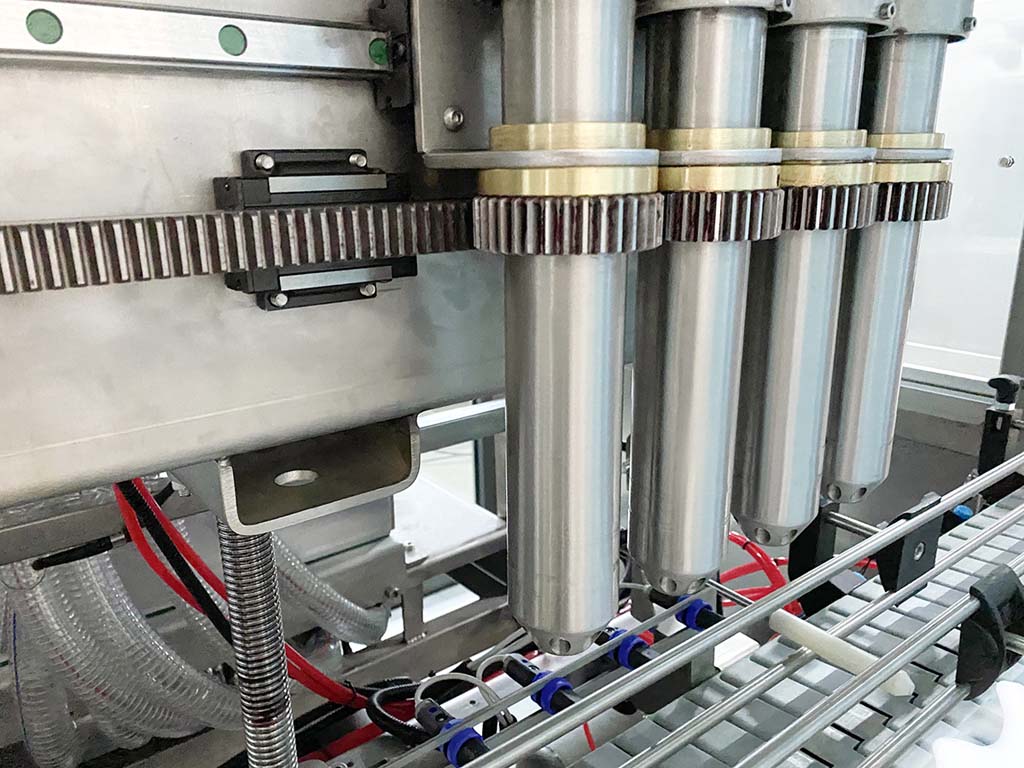

• The number of filling nozzles is made with 6 + 6 or 4 + 4 chambers,
• This system which fills volumetrically, operates with 8-row piston for "four rows of black color" and "four rows of white color",
• The filling system operates precisely and serially with a 2000 watts SERVO motor and a screw control shaft,
• The machine can produce hot water in its own structure and has a water tank with a 4.500 wattsresistor,
• The cabin part of the machine is covered and closed with sliding "LAMINATED GLASSES" that can be opened,
• The machine has an air supply tank and a pressure monitoring sensor warning in case of pressure losses and drops,
• The closed area of the machine is heated with ceramic heaters (temperature controlled)

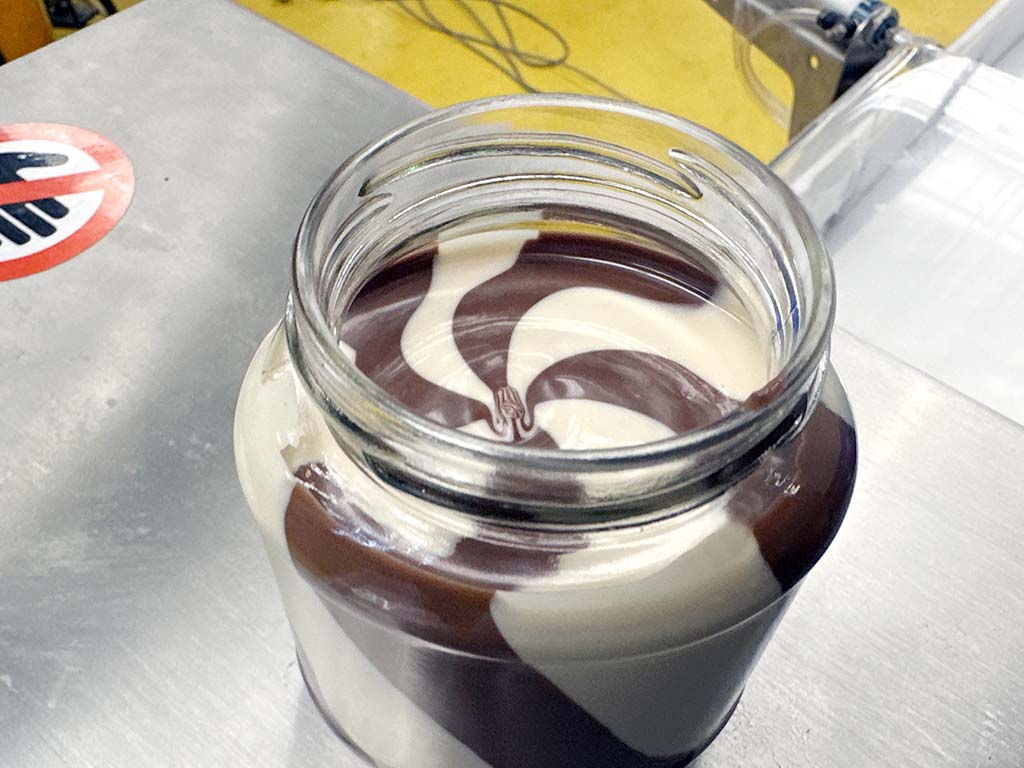

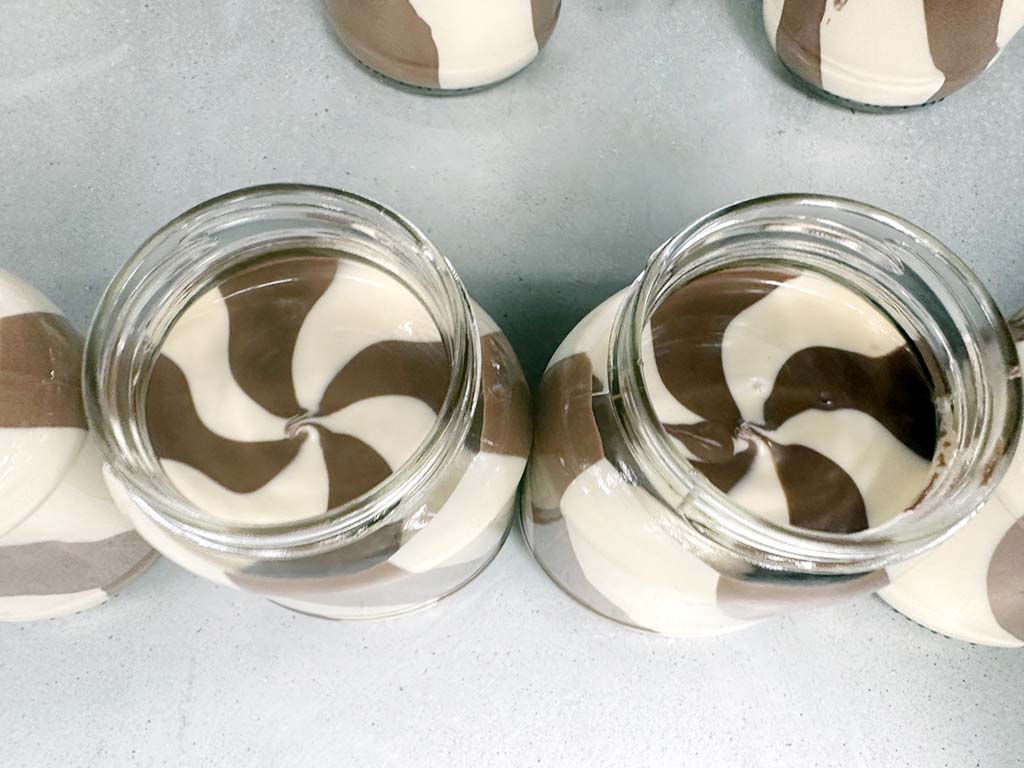

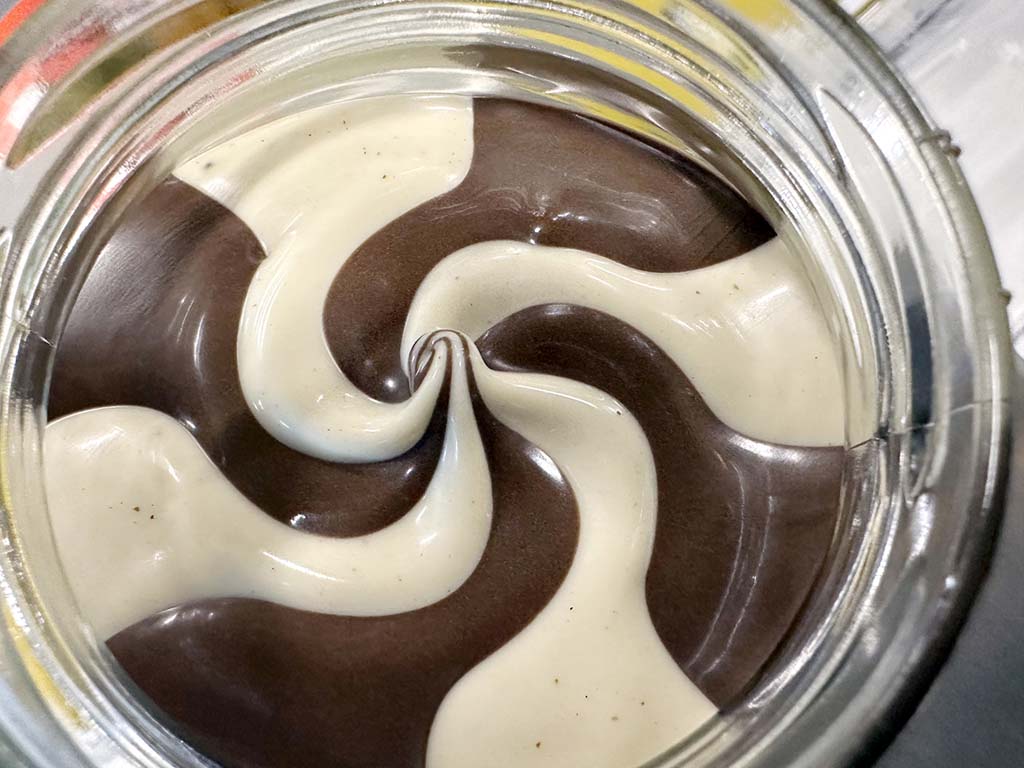

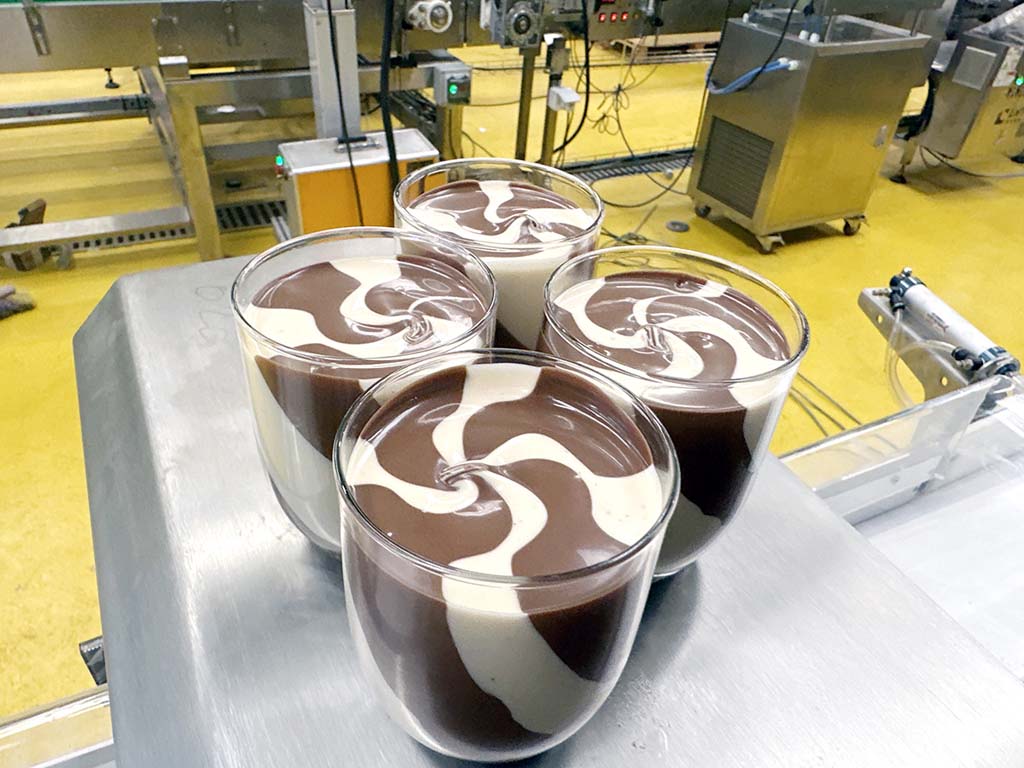

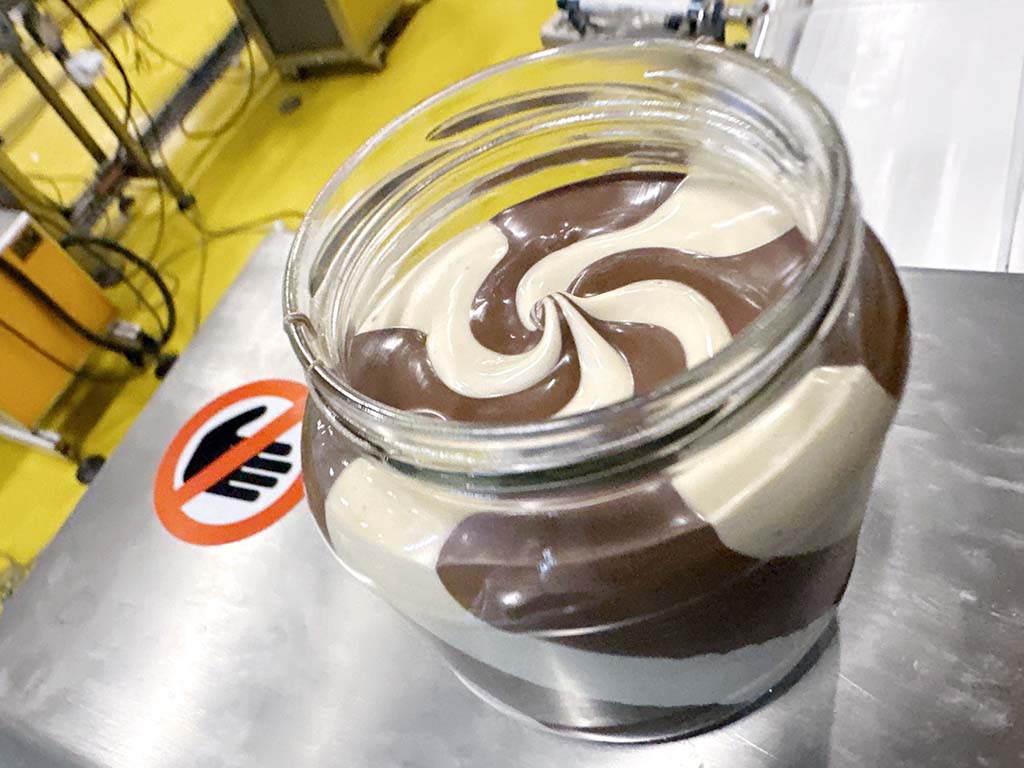

• The nozzle lowering system and the system for helical patterning (maximum 180 degrees) on the machine are servo motor controlled and precisely adjusted,
• It does not allow dripping when the nozzles complete the filling, there is a drop retraction system,
• Together with the machine, the chocolate feed chamber for two different colors consists of two separate tanks, 50 kg + 50 kg,
• The machine also has a pneumatic 1" inch stainless steel valve for feeding products into the black and white chocolate chambers. It provides automatic filling from the main tank (controlled by a sensor)
• The machine is made of 304 stainless steel material, the filling nozzles are made of AISI 303 chromium and the volumetric system is made of 7075 series aluminum, The pistons are made of AISI 303 chromium material,
• The chocolate transfer hoses of the machine are suitable for food,
• At the inlet of the machine, there is a jar feeding tray and a stacking system , (Optional)
• The machine has holder guides for 2 different jars which can be easily changed on the conveyor belt,
• The speed of the machine can be increased or decreased proportionally,
• The filling capacity is 25-28 jars per minute,
• At the outlet of the machine, there is an intelligent collection tray to collect the jars. (Optional)
• The filling weight can be precisely adjusted through the touch screen,
• The machine is controlled by 7” inch DELTA / SIEMENS touch screen, (Siemens is offered optionally)
• If desired, the machine can be controlled by using an "Android" tablet which is a remote control system that can communicate through Wi-Fi (Optional)
• The weight range of the machine is minimum 100 g, maximum 800 g per jar, weight accuracy is +/- 1 g,
• The length of the machine is 400 cm x the width is 200 cm x the height is 190 cm,
• The total electric power: 10 Kw
• The weight of the machine: 820 kg.
