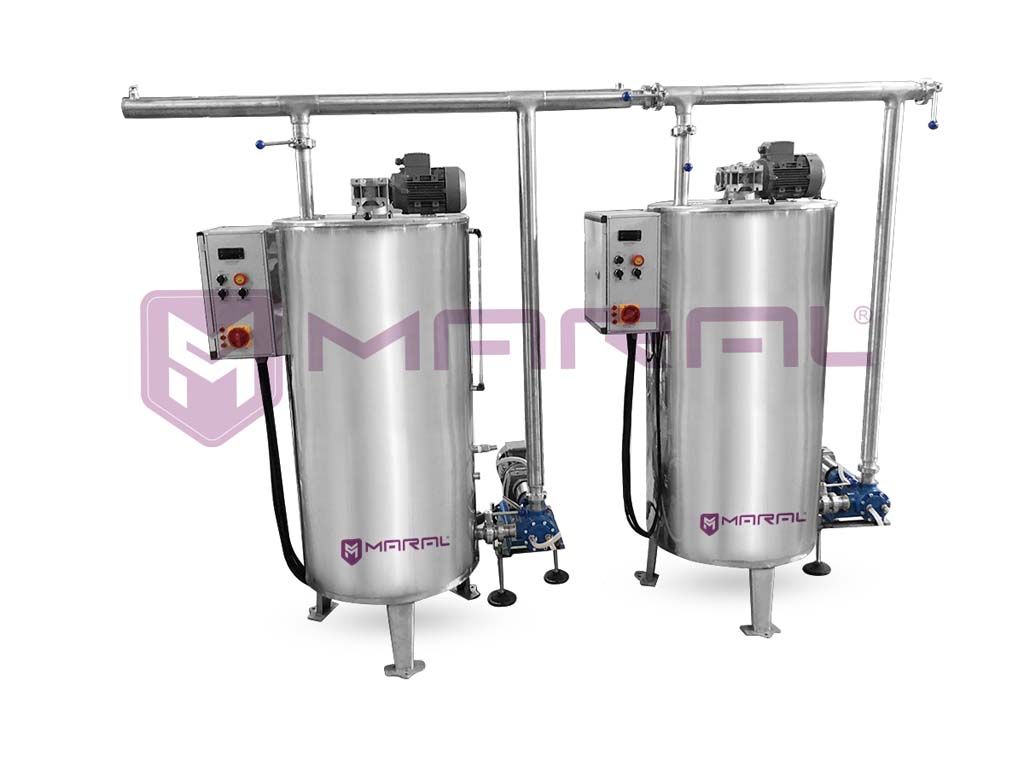

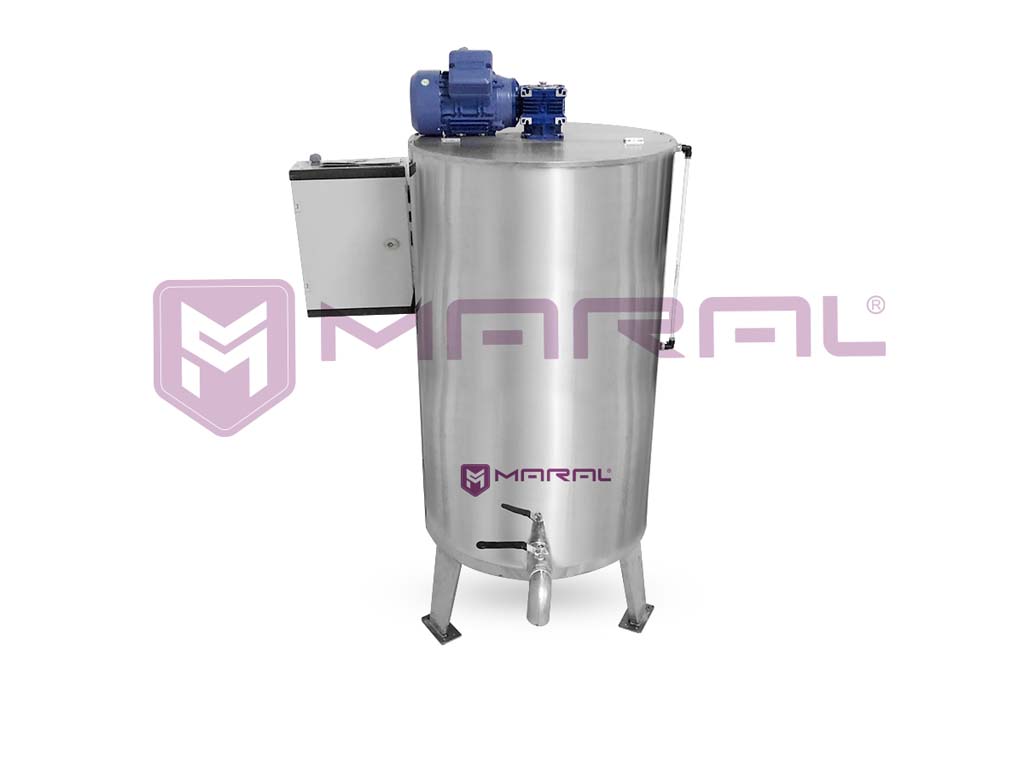

AWC 100 - CHOCOLATE RESTING AND STOCK TANK
Technical Specifications

• The capacities are preferred based on the capacity of the chocolate mixer,
• Our machines are completely made of  “AISI 304” Chromium stainless steel,
• The double-walled tank is equipped with a water heating system and the wall pipes are kept warm by the circulation pump,
• The electrical panel is available on it and it has a digital temperature display and the mixer motor is controlled by the push of a button, (Optional mixer motors with time control are produced)
• Our machine has a 0.75 / 1.5 Kw mixer motor and a reducer,
• The resistors used in the machine are 2.500 Watts x 2 pieces and PT 100 temperature controlled,
• The water transfer motor is inverter controlled and it is an adjustable speed motor,
• The electrical materials of the machine panel are from SIEMENS, the heat control devices are from AUTONICS,
• Valves, pumps and other piping used in our machine are walled, have hot water circulation and are made of AISI 304 stainless steel,
• The chocolate transfer pump has a 2.2 Kw cast iron motor and a 105 rpm reducer,
• The capacity of the machine is 250 - 500 kg,
• Weight of the machine :350 KG / 420 KG
